Camera model
|
Type
|
Main output
|
Secondary outputs
|
|
Colour CoolView
|

|

|
|
|
GT ratings   |
Manufacturer’s specifications
|
Applications
|
|
|
- 3 CCD Colour camera ideal for brightfield and fluorescence imaging
- Real;-time image output at full resolution
- 1360 (h) x 1024 (v) pixels,
- Integral electronic shutter – user selectable exposure from < 5 microsecs to >200 secs
- Dual IEEE 1394 Firewire bi-directional output sockets in camera head housing.
- CoolView_FDI camera is Firewire D-CAM compliant (IIDC 1394 based Digital Camera Specification) and image acquisition can be controlled using any fully compliant Firewire D-CAM control software interface.
- Appendix - Mains Input voltage 110–240 V ac 50/60 Hz autosensing
|
- Low light and visible Fluorescence Microscopy
- Scientific imaging of all kinds
- High Quality, low light surveillance
|
|
More Information Please
|
|
|
|
|
|
|
|
|
|
Camera model
|
Type
|
Main output
|
Secondary outputs
|
|
CoolView FDI
|

|
|
|
|
GT ratings |
Manufacturer’s specifications
|
Applications
|
|
|
- On chip binning – user selectable: from 1 x 1 to 63 x 63
- Sub-area readout – user selectable in X and Y
- Progressive Scan Interline Transfer CCD
- 1392 (h) x 1040 (v) pixels, 6.45 microns square
- Integral electronic shutter – user selectable exposure from < 5 microsecs to >10 minutes (camera, standard software driver from 1 millisec to > 10 minutes)
- Dual IEEE 1394 Firewire bi-directional output sockets in camera head housing.
- CoolView_FDI camera is Firewire D-CAM compliant (IIDC 1394 based Digital Camera Specification) and image acquisition can be controlled using any fully compliant Firewire D-CAM control software interface.
- Weight approx. 1.25 kg (camera head) 1.4 kg (power supply & camera connecting cable)
- Dimensions: Head: 180mm (l) x 95mm (w) x 68mm (d) Power supply: 245mm (l) x 110mm (w) x 50mm (h)
- Appendix - Mains Input voltage 110–240 V ac 50/60 Hz autosensing
|
- Very low light and visible Fluorescence Microscopy
- Medical Imaging including X-Rays
- High Quality, low light surveillance
|
|
More Information Please
|
|
|
|
|
|
|
|
|
Camera model
|
Type
|
Main output
|
Secondary outputs
|
|

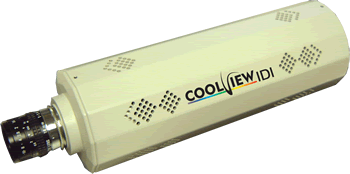

CoolView IDI
|

|
|
|
|
GT ratings |
Manufacturer’s specifications
|
Applications
|
|
|
- Input photocathode
- Choice of OPTIMIZED photocathode:
- Input format 1392 x 1040 pixels (4:3 aspect ratio)
- Lens fitting C-mount standard
- Input window Choice of fused silica (for UV transmission), AV glass or fiber optic input
- Intensifier Resolution Up to 64 line pairs/mm (solar blind – up to 45 lp/mm)
- Intensifier gain Software controlled in 100 steps – from full gain (typical 10 000) to 1% of full
- Video gain Software controlled in 100 steps over nominal 10:1 range
- Phosphor High speed, effectively zero lag
Coupling Direct to CCD pixels via low-distortion tapered microfibre link
- CCD 1392 (h) x 1040 (v) active pixels: high % QE: progressive scan – interline transfer
- Image rate 12 images per second (@ 1392 x 1040 pixel resolution) @ 20 MHz
- Gate pulse range Software controlled from 1 to 10 000 pulses per image acquisition
- Binning User selectable from 1 x 1 to 8 x 8 (with Firewire) or to 63 x 63 (with LVDS) via software control – and non-square pixels with either output mode
- Sub-area readout User selectable, independently in X and Y, via software control
- Exposure time Minimum 1 millisecond to > 10 minutes
Cooled sensor Stabilized typically at -T > 45°C for long term on-chip integration
- Data output Standard IEEE 1394 Firewire or LVDS and optional RS422/CameraLink
Digitization Software selectable 12-bit. Readout 20MHz
- Fusion Mode with 16-bit image digitization Actual dynamic range ≈ 14-bits (RMS noise in darkness ≈ 4.0 ADU @16-bit / 10MHz digitization using highest quality setting). Gives equivalent sensor full well capacity ≈ 225,000 e- per pixelFaster acquisition lower quality setting gives useful dynamic range of ≈ 14-bits (but with increased noise at high intensity values > 3 500 ADUs)Up to approx. 13 (900 x 900 pixel) frames per second with fast 20 MHz readout driver (or up to > 80 frames per second with binning)
- External synchronization TTL output trigger delayed or advanced relative to gate pulse to trigger external event
- Gating Gate width and off-time between gate pulses both from 100 ns minimum in steps of 25 ns. Number of gate pulses in single acquisition from 1 to 10 000. All values user controlled via software driver. Repetition rate up to1kHz (standard) or up to 30 kHz (optional)
- Acquisition software PhotoLite from PSL or Image Pro Plus from Media Cybernetics or Labview
- Power 110-240 Vac 50/60Hz. Head driven from free-standing power supply unit
- Readout mode Appropriate frame grabber supplied as part of systemCoolView IDI camera is FireWire D-CAM compliant (IIDC 1394 based Digital Camera Specification) and image acquisition can be controlled using any fully compliant FireWire D-CAM control software interface.
- Camera head size 72mm dia. x 214mm long (standard gating frequency – optional fast gating model is larger)
- Power supply size 245mm long x 110mm wide x 50mm high
- Head weight 1.25kg (standard gating frequency – optional fast gating model is heavier)
- PSU weight 1.40kg
- Option 40 mm image intensifier for special applications
|
- Very low light and visible Fluorescence Microscopy
- Medical Imaging including X-Rays
- High Quality, low light surveillance
|
|
